Milwaukee Packout Undermount Half Width DXF File, Plasma Laser CNC Ready, Instant Download, with Bend Table, Metric/Inches, Cut-Ready!

Ideal for motorcycles, bikes, and scooters! Grab this precision DXF file and start cutting your Milwaukee Packout mounting plate right away on your Plasma, Laser, or Waterjet CNC machine. Designed and carefully verified, this file delivers exact fits and clean cuts with no wasted material or alignment issues.

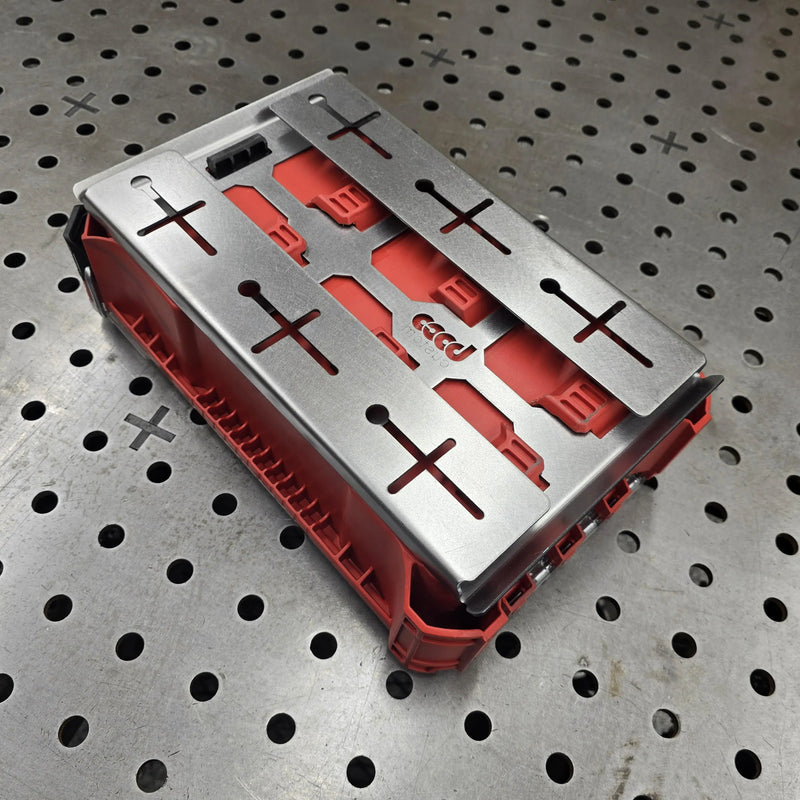

This file replicates the functionality of the Milwaukee 48-22-8496 PACKOUT Mounting Plate—ideal for fabricating durable steel versions for garage walls, truck beds, toolboxes, trailers, or shop organization.

Why you‘ll love this DXF

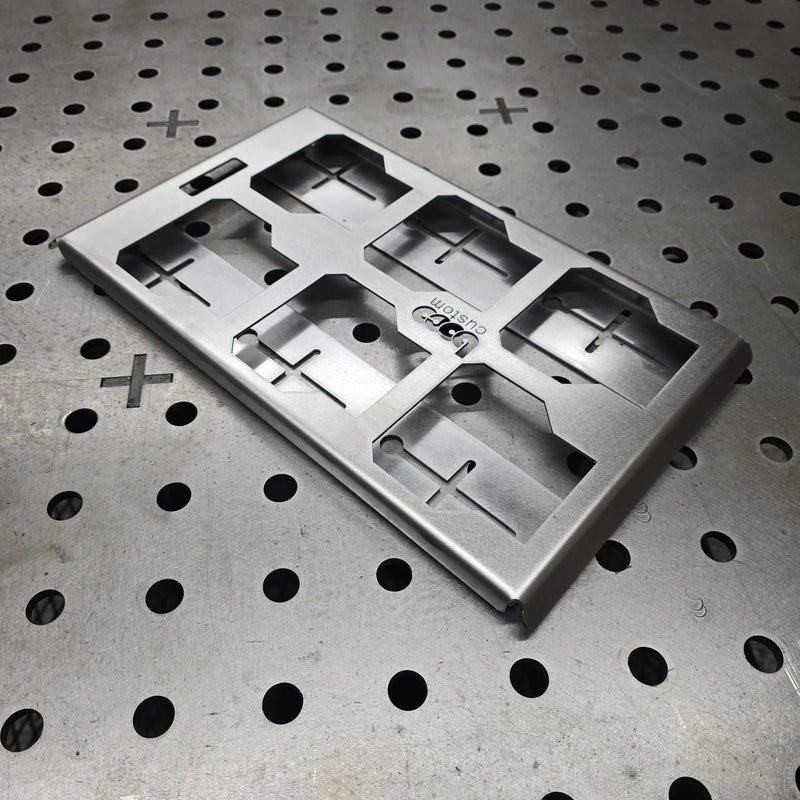

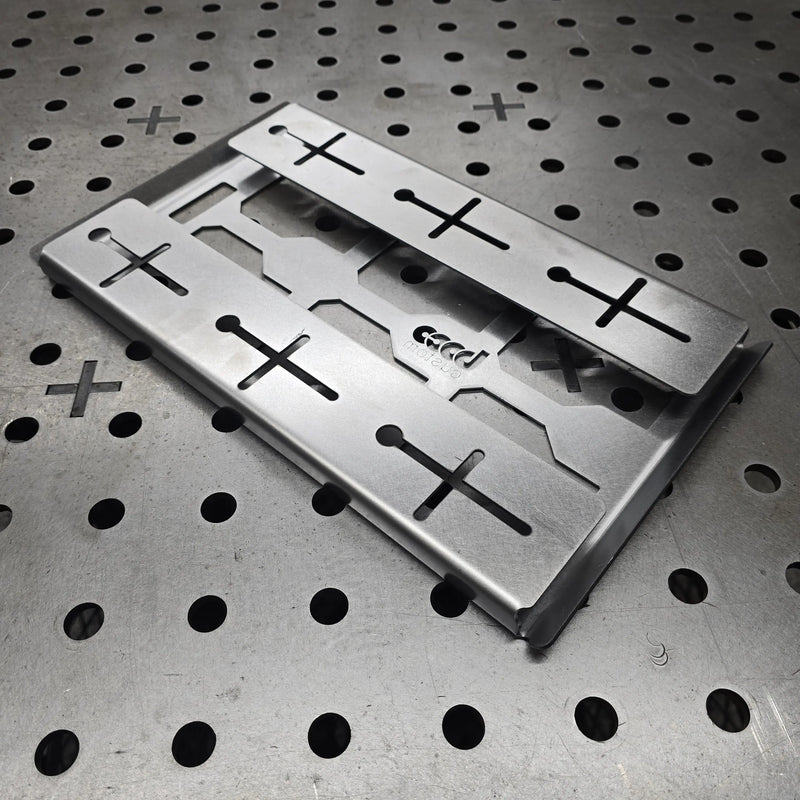

✅ Dual File Variations — Includes two versions: one with side bends for added rigidity and one without for simpler flat cuts—choose based on your equipment and setup
✅ Inches & Metric Formats — All files provided in both imperial and metric units for universal compatibility and easy scaling
✅ Ready-to-Cut Design — Pre-formatted, tested, and proven for immediate use—no cleanup or adjustments needed before cutting
✅ Flexible Gauge Options — Flexible Gauge Options — Designed and tested on 10-gauge and 14-gauge steel for heavy-duty or light duty applications
✅ Software Compatibility — Optimized for Aspire, Fusion 360, EnRoute, SheetCAM, LightBurn, and most CNC/plasma/laser software
✅ Instant Digital Download — Access files immediately after purchase—no waiting, start fabricating today

Usage & License
✅ You’re welcome to use these files to create and sell your own finished physical products (e.g., mounting plates, custom storage solutions).
✅ Please do not resell, share, distribute, or modify and redistribute the DXF files themselves in any way—this protects the original design.

Important Digital Product Info
➤ This is a digital download only – no physical item will be shipped.
➤ File delivered via Etsy instant download link (ZIP if multiple files).
➤ As a digital product, all sales are final and non-refundable.
➤ If you run into any issues (e.g., compatibility or download problems), message us right away—we‘re here to help get you cutting successfully!

What‘s Included
➤ High-quality DXF files (dual variations, inches primary + metric layers)

Download now and fabricate reliable Packout mounts with pro-level precision. Your shop or garage setup deserves designs that perform. 🛠️

Thanks for supporting a small USA maker! And remember, we support you too! If you run into any issues with the file (e.g., compatibility or download problems), please message us right away — We‘re here to help get you cutting successfully!

Listing Note: BOCO Custom LLC is in no way affiliated with the specific tool brands pictured in the listing. Unless otherwise noted screws, tools, and batteries are NOT included.

10-Gauge Steel (0.1345" | Thickness of Two Stacked Dimes)

• Best For: Heavy-duty commercial wall mounts, shop workbenches, and massive modular tool stacks.
• The Advantage: Extreme structural stiffness. This ultra-thick steel completely eliminates flexing, twisting, and tool rattling, making it the definitive choice for demanding daily job-site use.

12-Gauge Steel (0.1046" | Thickness of a Standard House Key)

• Best For: Mobile service vans, enclosed trailers, and standard shop organization layouts.
• The Advantage: The ultimate sweet spot between bulletproof strength and smart weight distribution. It handles constant over-the-road vibrations flawlessly without adding unnecessary bulk to your mobile rig.

14-Gauge Steel (0.0747" | Thickness of a Nickel)

• Best For: Handheld battery organizers, small tool holsters, and lightweight shelf accessories.
• The Advantage: High-tensile rigidity in a streamlined profile. It provides a rock-solid, permanent mount for smaller gear while keeping your workspace layout clean and low-profile.

8-Gauge Aluminum (0.1285" | Heavy-Duty Marine Grade)

• Best For: Open truck beds, roof racks, exterior trailer sides, and high-moisture environments.
• The Advantage: Maximum corrosion resistance with severe weight savings. Shaved pounds keep your mobile fuel efficiency optimized while remaining completely immune to rain, snow, and road salt oxidation.

10-Gauge Stainless Steel (0.1345" | Thickness of Two Stacked Dimes)

• Best For: Premium exposed truck bed brackets, marine applications, high-end shop builds, and ultimate weather protection.
• The Advantage: Combines the absolute, unyielding structural rigidity of our thickest 10-gauge plate with total lifetime corrosion resistance. It requires no paint or powder coat to stay 100% immune to rust, road salt, and harsh outdoor elements.

Note: Sheet metal gauge numbers run inversely—the lower the gauge number, the thicker and more rigid the actual metal substrate is.

We fabricate our mounting solutions and accessories using commercial-grade materials built for harsh environments. Choose the right finish for your build and review our care recommendations below:

Textured Black Powder Coat

• What it is: An industrial-grade, chip-resistant finish applied over media-blasted metal. Ready to install out of the box and engineered to survive heavy daily tool friction.
• Care: Low maintenance. Wipe down occasionally with a damp microfiber cloth to remove dust or workspace grime. Avoid using harsh chemical solvents or abrasive pads that could scratch the protective coating.

Raw Steel

• What it is: Shipped as premium raw American steel that has been completely precision laser-cut, sanded, and deburred. Perfect for fabrication shops or DIYers who want to weld the brackets directly to a rig or custom paint them.
• Care: ⚠️ MUST BE COATED UPON ARRIVAL. Raw steel will oxidize and develop surface rust if exposed to moisture or air humidity. Wipe with a prep solvent or isopropyl alcohol to remove any fingerprint oils, then apply a high-quality metal primer and topcoat (or send it to your local powder coater).

Raw Aluminum

• What it is: Clean, lightweight, and completely rust-proof. Engineered specifically for high-moisture setups, open truck beds, or exterior trailer sides.
• Care: Naturally corrosion-resistant. Aluminum will develop a dull patina over time when exposed to the elements, which is completely normal and acts as a natural protective layer. To maintain a bright look, clean occasionally with a mild soap and water solution or a dedicated aluminum polish.

Hand-Painted Finishes (Custom Accents)

• What it is: Custom badges, logos, and accent configurations individually detailed and finished by hand right here in Apple Valley.
• Care: Handle with care during installation to prevent surface marring. Clean only with mild dish soap and water. Do not use brake cleaner, acetone, or heavy degreasers on hand-painted surfaces, as these chemicals will strip or dissolve the finish.
